Keep your systems in sync, reduce data entry mistakes, and streamline your operations in the field and the office with Core HR and Acumatica. Integrations between both systems make it easy to manage employee data with features like:

  • Full round-trip synchronization between systems (Importing/Exporting employee and company information)
  • Push Core HR employee data to Acumatica to complete payroll
  • Keep Benefit Deductions, Direct Deposit, Taxes, and more in sync

Table of Contents

Compatibility

Arcoro supports the last two years of Acumatica versions. As new versions are officially released, support for older versions will be retired on a rolling schedule.

Integration Demonstration

To provide a better understanding of the integration, you can watch our demonstration video below.

Connecting to Acumatica

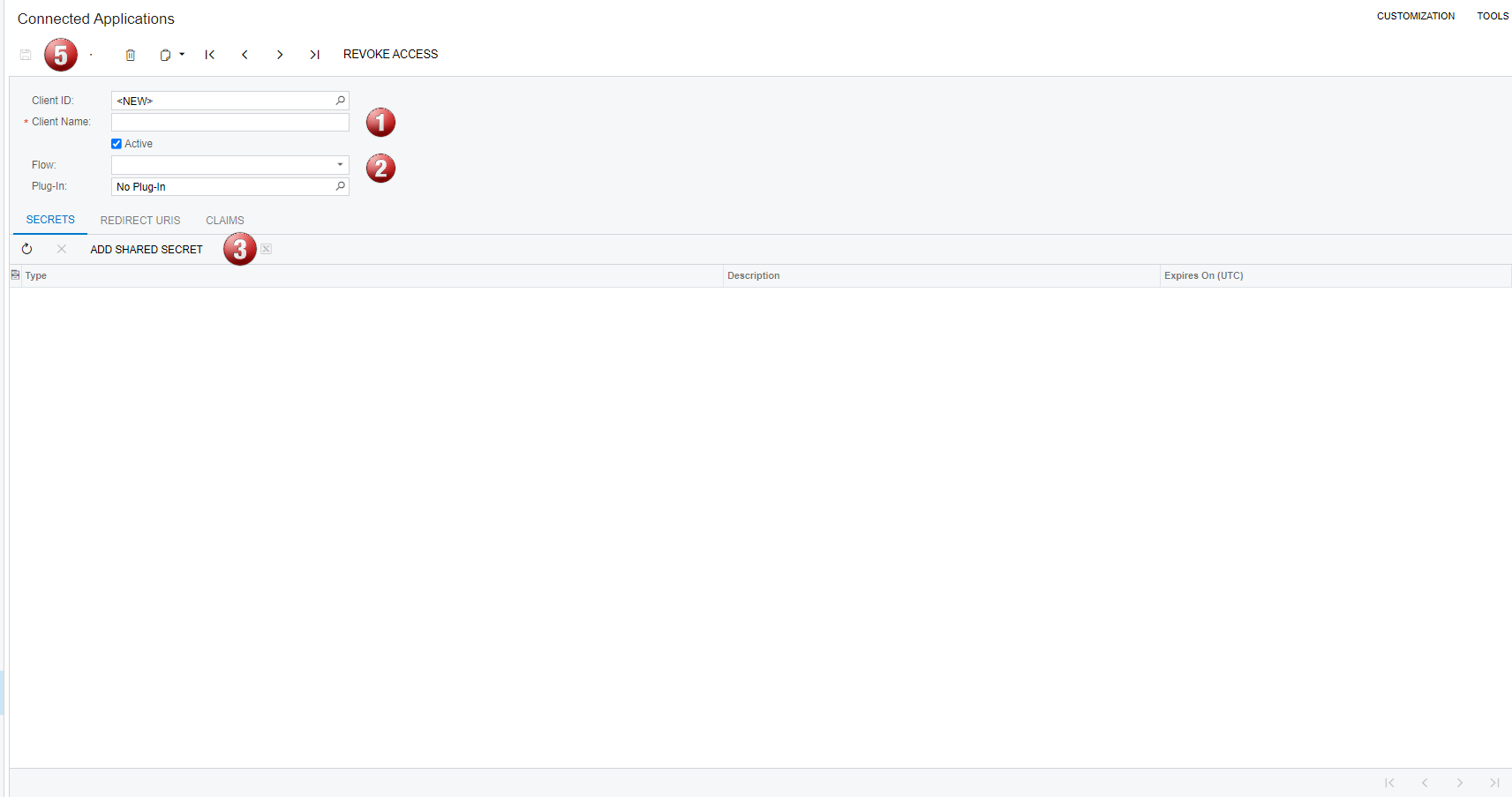

Creating a New Connection Application

Go to: Connected Applications Screen (More Items > Integration > Show All > Connected Applications)

Click and add a new record (Plus icon)


  1. Type the Client Name, for example: "ArcoroCoreHR"
  2. Select the Resource Owner Password Credentials on the Flow dropdown. This will be used for the API, allowing it to authenticate using the credentials.

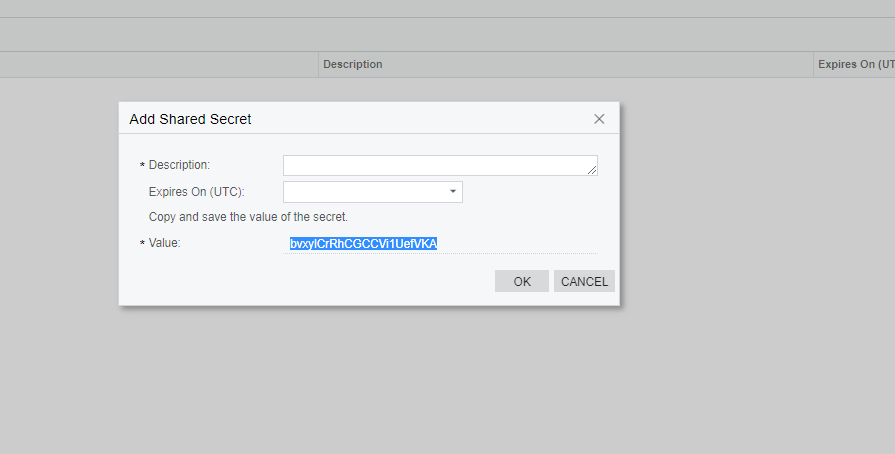

  3. Select Add Shared Secret, this section will create the Client Secret


It is not possible to get the "client secret" again after it is saved, for test purposes, you can add the "client secret" to the description. Click on the OK button

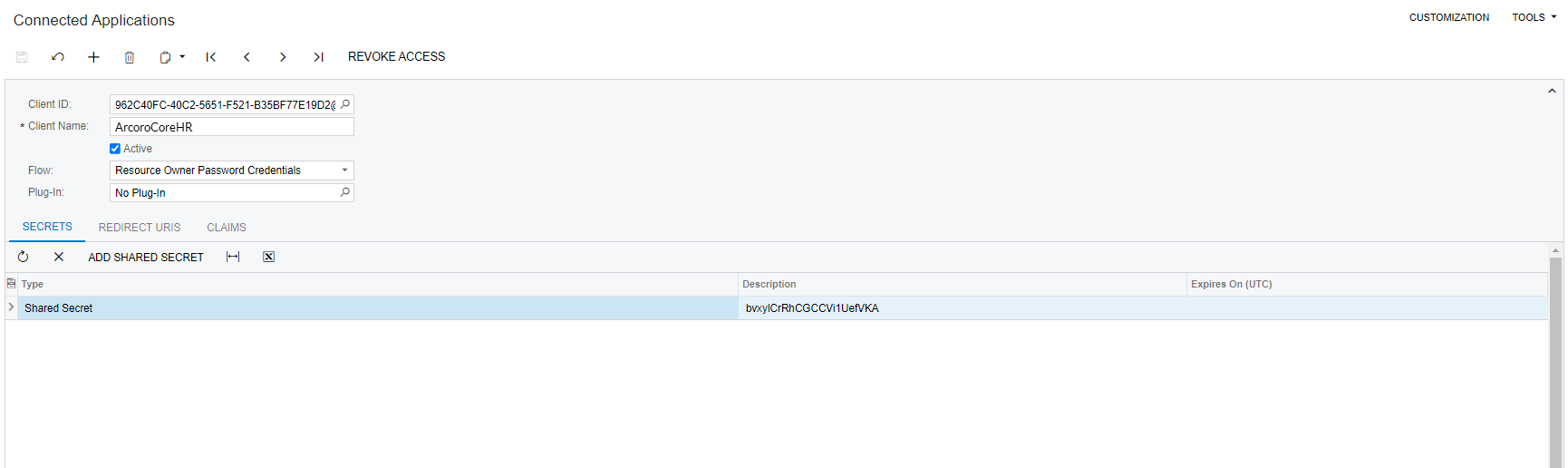

  1. Select the Save button and the Client ID key will be generated.


Note: If the Client ID is changed, the client name needs to be updated, this validation makes sure that the user does not forget to change the Client Name when the Client ID is changed.

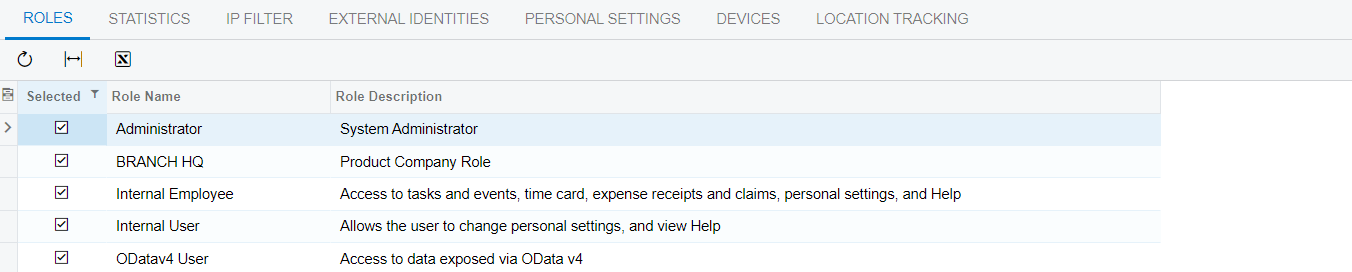

Acumatica User Roles

The minimum roles requirement:

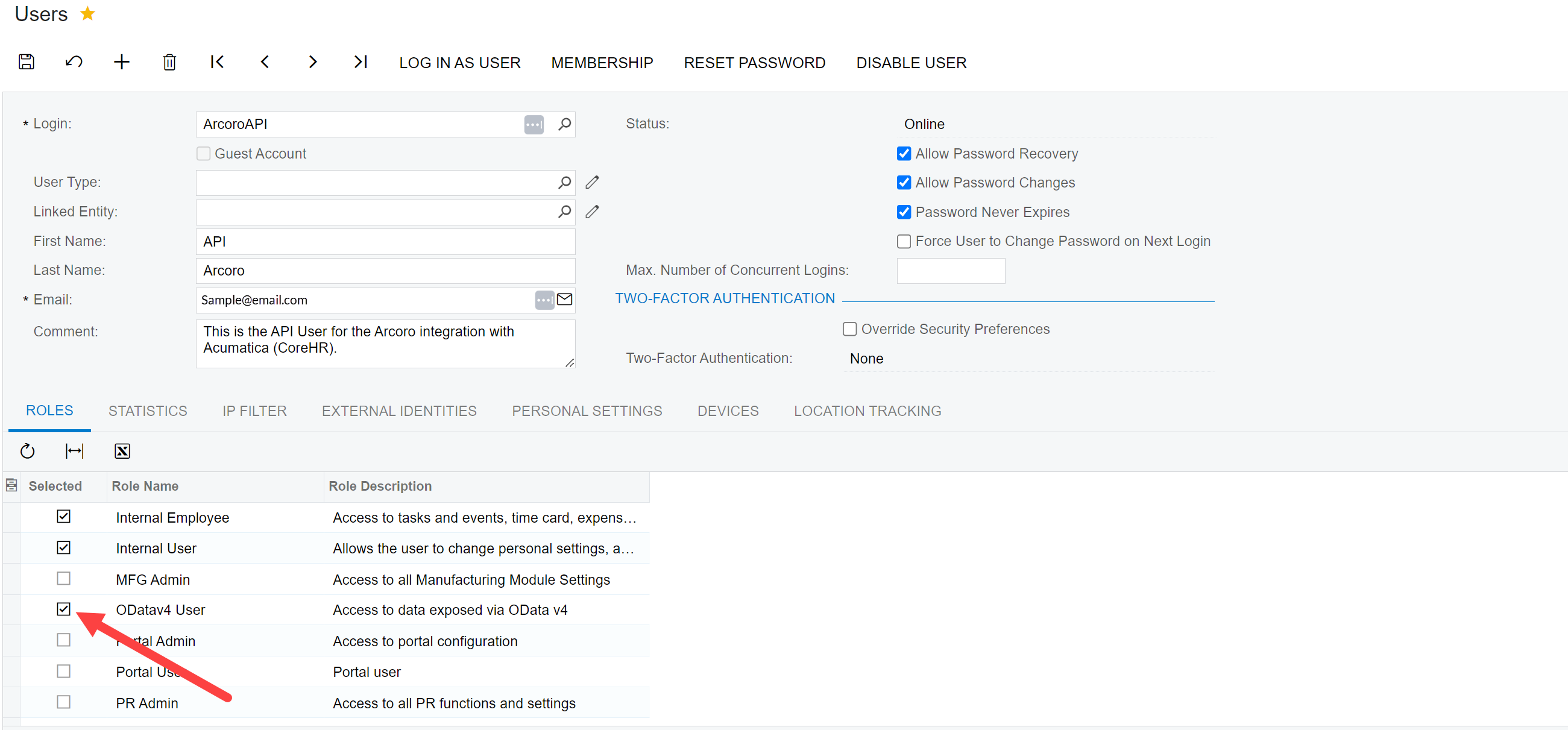

Create API Login and Associate OData4 User Role

Go to the Users Page and:

  1. Add an API login
    For example: Arcoro API
  2. Attach OData4 User Role
    Under Allowed Roles select OData4 User
  3. Review screenshots for other items to set
    Save

This user needs the ability to create/update organizational employees as well as their employee payroll settings. i.se. benefits, compensation, direct deposit, taxes, etc.

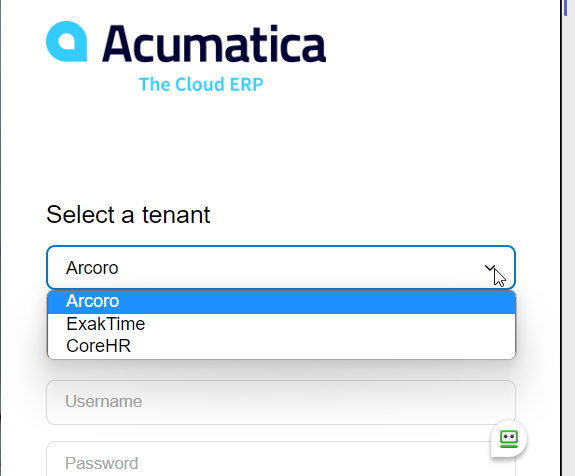

Connecting to Multi-Tenant Acumatica Account

If the account is a multi-tenant environment.
A connector is required for each tenant that you wish to sync
For example:
Arcoro account has 3 tenants, if all 3 were wishing to sync data, 3 connectors would be needed

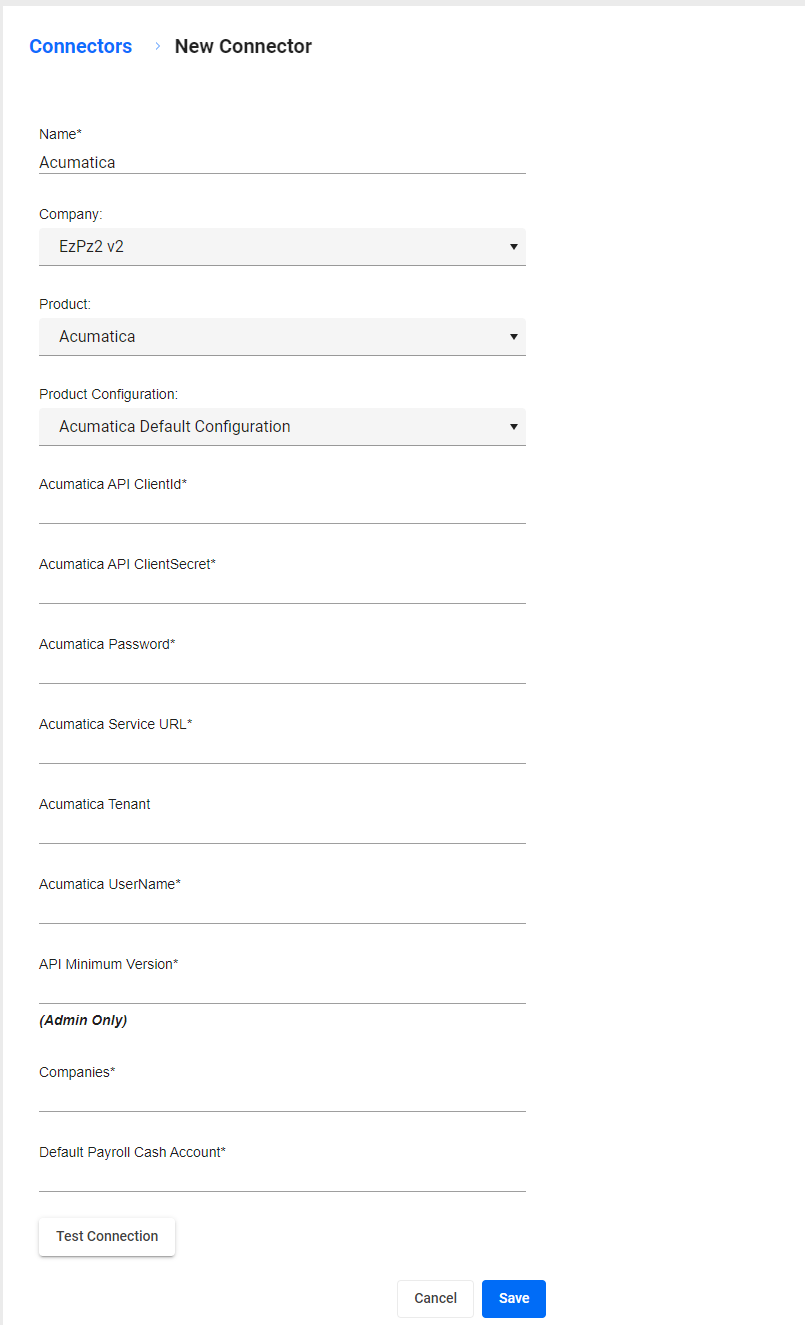

Arcoro Integrations Module Connectors Page


  • Name: The name of the connector
  • Acumatica URL: The URL that contains the instance name, for instance: http://localhost:9001/Acumatica2022
  • Client ID: Generated by Acumatica on the Connected Applications screen
  • Client Secret: Generated by the user on Acumatica at the Add Shared Secret section
  • Username: Credentials that are used for logging on Acumatica
  • Password: Credentials that are used for logging on Acumatica
  • Tenant: If client has multiple tenants supply the tenant for this connector
  • Companies: Enter "Default" for now
  • API Minimum Version: Must be 22.200.001 or greater
  • Default Payroll Cash Account: May be 10200 as a default from Acumatica?

Troubleshooting

Common Problems

Timeouts

Sometimes Acumatica API throws a timeout error, Arcoro's Integration Module already has the retries for that, the standard retry is 5 times with an exponential retry and back off strategy.

If this continues to happen the customer will need to try again later, this is something that it is not on our control.

Data Mapping Fields

We offer data mapping tables for:

Some Core HR fields must be created/modified with the assistance of an Arcoro Integration Services Consultant such as "User Defined Field #s".

Things to Note

  • The data sync from Core HR to Acumatica will sync data to both the Employee record in Acumatica and the Employee Payroll Settings record within Acumatica.

Employee

Things to Note

  • Only active employees and those terminated from January 1 of the previous year to the current date will be pulled over during the sync.
  • When a previously terminated employee is rehired, the integration will now use the hire date (not the termination date) as the rehire start date, and it will correctly update the employee's status to active in Acumatica.

Required fields are marked in RED.

Property Core HR Field Acumatica Field Acumatica EndPoint Notes/Rules
First Name First Name First Name employee
Middle Name Middle Name Middle Name employee
Last Name Last Name Last Name employee
Address 1 Home Address 1 Address Line1 employee
Address 2 Home Address 2 Address Line2 employee
Address City Home City City employee
Address State Home State State employee
Address PostalCode Home Zip Code Postal Code employee
Country Country Country employee
Social Security Number Employee SSN SSN employee
Marital Status Marital Status Undefined employee
Date Of Birth Date of Birth DateOfBirth employee
MainPhoneNumber Home Phone Home Phone employee
EmployeeIdentifier Employee ID Employee ID employee
EmailAddress Work Email Email employee
EmployeeStatus Employee Status If Terminated - Set to Terminated - Else ignore employee
EmployeeType Employee Type Employee Type payrollSettings
BenefitStatus Benefit Status <Undefined> employee
PayFrequency Pay Schedule Pay Group payrollSettings
PayrollPayGroup Payroll Pay Group Class ID payrollSettings
HireDate Hire Date If start reason is Rehire then the start date employee
OriginalHireDate Original Hire Date Taking the oldest start date as the Hire Date employee
TerminationDate Termination Date If Terminate is checked, take the most recent end date employee
TerminationReason Termination Reason* Termination Reason employee *If Employee is Terminated
Title Title Title employee
WorkPhone Work Phone Business 1, 2 or 3 (Priority order is 1 if no 1 then 2, if no 2 then 3 if no 3 - empty) employee
CellPhoneNumber Mobile Phone Cell Phone employee
WorkFax Work Fax Work Fax employee
Department Department Department employee
Location Facility 1 Name Branch employee
Ethnicity EEOC Ethnicity Ethnicity (Payroll Tax Settings) payrollSettings
EEOCOccupation EEOC Occupation Position (Employment History) employee
EEOCWorkersComp EEOC Workers Comp DefaultWCCCode payrollSettings
OvertimeExempt Overtime Exempt Exempt From Overtime Rules payrollSettings
UDFL7 User Defined Field 7 Organizational Employee Class
UDFL8 User Defined Field 8 Work Location
UDFL9 User Defined Field 9 Rehire Eligible employee
UDFL13 User Defined Field 13 DefaultUnion payrollSettings
UDFL15 User Defined Field 15 Labor Item employee

Federal Taxes

Required fields are marked in RED.

Property Core HR Field Acumatica Field Acumatica EndPoint Notes/Rules
FedTaxYear Year If Federal Tax Use 2020 W4 = "True" Then 2020, else 2019 payrollSettings
FedTaxAllowances Allowances Federal Tax Allowances payrollSettings
FedTaxAdditionalWithholding Additional Withholding Federal Tax Additional Withholdings payrollSettings
FedTaxFilingStatus Filing Status Federal Filing payrollSettings
FedTaxExempt Exempt Federal Tax Is Exempt payrollSettings
FedTaxStartDate Start Date If Federal Tax Use 2020 W4 = "True" Then 01/01/2020, else 12/31/2019 payrollSettings
FedTaxDependentsAmount Dependents Federal Tax Dependents payrollSettings
FedTaxOtherIncome Other Income Federal Tax OtherIncome payrollSettings
FedTaxDeductions Deductions Federal Tax Deductions payrollSettings
FedTaxTwoJobs Two Jobs Federal Tax Two Jobs payrollSettings

State Taxes

Required fields are marked in RED.

Property Core HR Field Acumatica Field Acumatica EndPoint Notes/Rules
StateTaxYear Year Use Hire Date, except AZ - default to 2023 payrollSettings Acumatica to Core HR only
StateTaxFilingStatus Filing Status Filing Status payrollSettings Acumatica to Core HR only
StateTaxFilingState Income Filing State Work Location State payrollSettings Acumatica to Core HR only
StateTaxAllowances Allowances Allowances payrollSettings Acumatica to Core HR only
StateTaxAdditionalWithholding Additional Withholding Additional Allowances payrollSettings Acumatica to Core HR only
StateTaxPercentDefined Percent Selected AZ only payrollSettings Acumatica to Core HR only
StateTaxExempt Exempt Exempt payrollSettings Acumatica to Core HR only
StateTaxStartDate Start Date Use Hire Date payrollSettings Acumatica to Core HR only

Direct Deposit

Things to Note

  • The integration has validation to prevent the use of the FEDWIRE payment method as a default payroll payment method in the connector to align with Acumatica’s deprecation of FEDWIRE. Users will see the error message “The Default Payroll Payment Method must be Check, Cash, or ACH” when attempting to save invalid configurations.
  • Active employees may trigger validation errors if they do not have at least one active Direct Deposit marked as "Gets Remainder".
  • Terminated employees will not trigger any validation errors for direct deposit requirements.

Required fields are marked in RED.

Property Core HR Field Acumatica Field Acumatica EndPoint Notes/Rules
BankName Bank Name BankName (Payment) payrollSettings
AccountNum Account Number Account Number payrollSettings
RoutingNum Routing Number Bank Routing Number payrollSettings
AccountType Deposit Account Type Type payrollSettings
Amount Deposit Amount Amount payrollSettings
Percent Deposit Percent Percent payrollSettings
EDCode ED Code If it reads "Gets Remainder" checked - else unchecked payrollSettings
EffectiveDate Start Date Last Modified Date Time payrollSettings
ExpirationDate Stop Date End Date payrollSettings
Priority Priority Sequence payrollSettings

Compensation

Things to Note

  • Compensation records are selectively written based on the wage type:
    • Acumatica to Core HR - Only "Regular" wage type records are written.
    • Core HR to Acumatica - "Regular" wage type records are written or managed.
    • Non-"Regular" types will not trigger deactivation.
  • Annualized salary is rounded using "Banker's Rounding" (to the nearest penny) instead of to the nearest dollar.

Required fields are marked in RED.

Property Core HR Field Acumatica Field Acumatica EndPoint Notes/Rules
CompensationType Compensation Type If Unit of Pay states Hour then Hourly ELSE Salary (Yearly) payrollSettings
PerPayRate Per Pay Rate Pay Per Period (Calculation to Annual when Salaried) payrollSettings
PayRateTypeCode Pay Rate Type Code Earning Type payrollSettings
PayRateStartDate Pay Rate Start Date Start Date payrollSettings
PayRateEndDate Pay Rate End Date End Date payrollSettings
PayRateIsAutoPay Pay Rate is Auto Pay Active payrollSettings

Benefits and Fringe

Required fields are marked in RED, if any.

Property Core HR Field Acumatica Field Acumatica EndPoint Notes/Rules
DeductionCode Alt Code 1 Deduction Code payrollSettings
DeductionCost Per Pay Deduction Amount "Deduction Amount / Deduction Percent If GRS - Percent" payrollSettings
EffectiveDate Benefit Effective Date Last Modified Date Time payrollSettings
ExpirationDate Benefit Expiration Date End Date payrollSettings
FringeCode Alt Code 2 Deduction Code payrollSettings
FringeAmount Per Pay Deduction Amount Contribution Amount / Contribution Percent payrollSettings
EffectiveDate Benefit Effective Date Last Modified Date Time payrollSettings
ExpirationDate Benefit Expiration Date End Date payrollSettings
