Calculated Fields Function List for Advanced Analytics

This is a listing of all of the functions that you can use in making your own calculated fields.

If you want to know how to make your own calculated fields, there is a video about it here.

You can scroll horizontally to view all the data from a column.

Function Name Description Output Type Formatting
AND

Returns TRUE when both expressions are TRUE, otherwise returns FALSE.

This is most commonly used as part of an IF or CASE statement.

TRUE, FALSE

expression_one = 'x' AND expression_two = 'y'

CASE
WHEN
([DataWarehouse].[dm].[MobileForm].[QuestionText]= 'Were you injured?'
AND
[DataWarehouse].[dm].[MobileFormResponse].[ResponseValueText]= 'Yes')
THEN 'Injury Reported'
ELSE 'Safe Day'
END

AVG Returns the average of a set of values. Numeric AVG([DataWarehouse].[dm].[TimeRecord].[TotalHours])
BETWEEN

Returns TRUE if the test value is equal to or between the two expression values.

This is most commonly used as part of an IF or CASE statement.

TRUE, FALSE

BETWEEN(test_value, start_expression,end_expression)

IF(
BETWEEN([DataWarehouse].[dm].[User].[DateOfBirth], '01/01/2001','12/31/2001')
THEN 'Snake'
ELSE 'other'
END

CASE…WHEN Returns the value of the result expression if the test expression is true, otherwise, return the else expression. The data type returned is the data type of the return expression(the expression after the THEN) CASE
WHEN (test_expression) THEN
result_expression
ELSE else_expression
END

CASE
WHEN( [DataWarehouse].[dm].[UserTranscript].[CourseTitle]= 'CPR' ) THEN 'Bi-AnnualHealth' WHEN( [DataWarehouse].[dm].[UserTranscript].[CourseTitle] ='Forklift' ) THEN 'AnnualSafety'
ELSE 'Annual Other'
END
CAST…AS

Converts an expression from one data type to another.

You can use either this or the CONVERT function.
See the table below for a list of possible data types.



CAST(expression AS new_data_type)

CAST('06/16/1966' AS DATETIME)
CAST('10.5' AS MONEY)
CAST('10' AS NUMERIC)

CONCAT Joins values together as text. Text string

CONCAT(string_1, string_2)

CONCAT([DataWarehouse].[dm].[Job].[JobTitle], ' - ',[DataWarehouse].[dm].[Job].[RequisitionCode])

CONVERT

Converts an expression from one data type to another.

You can use either this or the CAST…AS function.
See the table below for a list of possible data types.



CONVERT(new_data_type, expression)

CONVERT(DATETIME, '06/16/1966')
CONVERT(MONEY, '10.5')
CONVERT(NUMERIC, '10')

COUNT Returns the total number of items in a group. Numeric

COUNT(field)

COUNT([DataWarehouse].[dm].[JobCandidate].[JobCandidateId])

DATEADD

Returns the date field plus the provided increment number.

datepart: the part of the date; ex day, month, year). See the Date Part table below
increment_number: the value added to date_field
date_field: input field

Datetime

DATEADD(datepart,increment_number, date_field)

DATEADD(yyyy, 2,[DataWarehouse].[dm].[User].[HireDate])
This adds 2 years to the HireDate

DATEADD(mi, -17,[DataWarehouse].[dm].[TimeRecord].[StopDatetime])
This subtracts 17 minutes from the StopDatetime

DATEDIFF

Returns the number of date units (like minutes, hours, ormonths) between two dates.

datepart: the part of the date; ex day, month, year). See the Date Part table below

start_datetime, end_datetime: two date fields

Numeric

DATEDIFF(datepart, start_datetime, end_datetime)

DATEDIFF(dd,[DataWarehouse].[dm].[UserLearningPlan].[AssignedDate],GETDATE())

DATEPART

Returns part of a supplied date field.

datepart: the part of the date; ex day, month, year). See the Date Part table below

date_field: date field from one of the tables in the report

Numeric DATEPART(datepart, date_field)

DATEPART(yyyy, [DataWarehouse].[dm].[User].[DateOfBirth])
DISTINCT

Returns unique values that are listed in a field.

This would typically be used within another function, like SUM or COUNT.

Returns the data type of the return values. DISTINCT(field)

COUNT(
DISTINCT([DataWarehouse].[dm].[User].[Department])
)
This returns the number of unique departments
GETDATE Returns the current date and time. Datetime GETDATE()
IF…THEN

Returns the value of the true_expression of theboolean_expression is TRUE, otherwise returns the value of thefalse_expression.

If you have multiple values that you want to test for you can embed an IF statement with another IF statement as many times as you have conditions as you need to check for. Using the CASE statement is probably going to be easier to build and troubleshoot than this option.

Returns the data type of the return expressions. IF (boolean_expression) THEN (true_expression) ELSE (false_expression) END

IF ([User].[City] = 'New York') THEN 'Apple'
ELSE 'not a fruit'
END

IF ( [TimeRecord].[TotalHours] < 3)
THEN 'Part Time'
ELSE(
    IF (BETWEEN ( [TimeRecord].[TotalHours] , 4, 8)
)
THEN
'Full Time'
ELSE 'Overtime'
END
) END
IIF If an expression is TRUE it returns the first value. If the expression is FALSE it returns the second value. Returns the data type of the return values. IIF(logical expression, first_value, second_value)

IIF(
[DataWarehouse].[dm].[UserLearningPlan].[TaskStatus] = 'Completed',
'OK'
,
[DataWarehouse].[dm].[UserLearningPlan].[TaskStatus]
)
ISNULL

Checks to see if a field is NULL. If it is NULL then it returns the value of the replacement expression. If it is not NULL then it returns the value of the original field.

Note, that in Analytics many of the fields, except for dates, that would normally be NULL have been replaced with blanks. In those cases, you should use an IIF, CASE, or IF statement to see if a field is blank.

The reurn data type is the same as the data type of the fieldbeing checked. IIF(logical expression, first_value, second_value)

IIF(
[DataWarehouse].[dm].[UserLearningPlan].[TaskStatus] = 'Completed',
'OK'
,
[DataWarehouse].[dm].[UserLearningPlan].[TaskStatus]
)
LEN Returns the number of characters of a given text field, including spaces. Numeric LEN(field)

LEN([DataWarehouse].[dm].[User].[AddressLine1])
MAX Returns the maximum value in a group. The same data type as the field. MAX(field)

MAX([DataWarehouse].[dm].[TimeRecord].[WorkDate])
This returns the maximum date clocked in or out.

MAX([DataWarehouse].[dm].[TimeRecord].[TotalHours])
This returns the greatest number of total hours.
MIN Returns the minimum value in a group. The same data type as the field. MIN(field)

MIN([DataWarehouse].[dm].[TimeRecord].[WorkDate])
This returns the minimum date clocked in or out.

MIN([DataWarehouse].[dm].[TimeRecord].[TotalHours])
This returns the lowest number of total hours.
OR Returns TRUE when any expression is TRUE, Otherwise returns FALSE.
This is most commonly used as part of an IF or CASE statement.
Boolean expression_one OR expression_two OR expression_three

CASE
WHEN(
[DataWarehouse].[dm].[User].[Department] = 'Concrete'
OR
[DataWarehouse].[dm].[User].[ManagerUserName] = 'Bob'
)
THEN 'Construction'
ELSE 'Maintenance'
END
ROUND Returns the original expression, rounded to the specified number of decimal places. Use a decimal_value of 0 to round to the nearest whole number. Numeric ROUND(field, decimal_value)

ROUND([DataWarehouse].[dm].[TimeRecord].[TotalHours], 3)
RUNNINGAVG Returns the average of all values of the expression from the first row up to the current row. The same data type as the field. RUNNINGAVG(field)

RUNNINGAVG([DataWarehouse].[dm].[TimeRecord].[RegularTimeHours])
For a date set that looks like this it would return the following values:
DAY, HOURS, RETURN
MON,8,8
TUE, 10, 9
WED, 8, 8.67
THU, 6, 8
FRI, 4, 7.2
RUNNINGCOUNT Returns the row count. Numeric RUNNINGCOUNT(field)

RUNNINGCOUNT( [DataWarehouse].[dm].[TimeRecord].[RegularTimeHours] )

For a date set that looks like this it would return the following values:
DAY, HOURS, RETURN
MON, 8, 1
TUE, 10, 2
WED, 8, 3
THU, 6, 4
FRI, 4, 5
RUNNINGSUM Returns the sum of all values of the expression from the first row up to the current row. Numeric RUNNINGSUM(field)

RUNNINGCOUNT( [DataWarehouse].[dm].[TimeRecord].[RegularTimeHours] )

For a date set that looks like this it would return the following values:
DAY, HOURS, RETURN
MON, 8, 8
TUE, 10, 18
WED, 8, 26
THU, 6, 32
FRI, 4, 36
SUM Returns the sum of all the values in group. Blank and NULL values are ignored. Numeric SUM(field)

SUM(
[DataWarehouse].[dm].[TimeRecord].[RegularTimeHours] )

Data Types

You can use these data types in the CONVERT or CAST...AS functions.

Data Types Description
Boolean True or False
Datetime Date and time
Money A number with a decimal. If you just have a number with a decimal, whether it is related to currency or not, use money; ie 3.14
Numeric A number without a decimal
Text Any alphabetical or numeric value. This can include values such as 'pizza', '3.14', 'True'

Date Parts

When using any of the date functions you can use the full date part names or the below abbreviations. All of the date parts are returned as numbers.

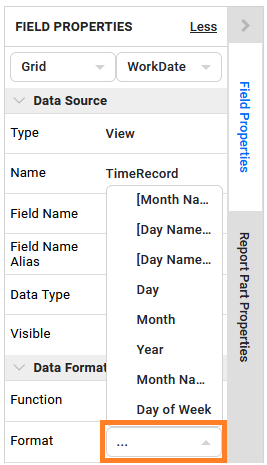

If you just want to display the year, month, day of week, etc., you can Format the date by selecting the field and modifying it in Field Properties.


Date Part Abbreviations
year yy, yyyy
quarter qq, q
month mm, m
dayofyear dy, y
day dd, d
week ww, wk
weekday dw
hour hh
minute mi, n
second ss, s
millisecond ms
